Li/MnO2 Cylindrical battery
Home> Products>Li/MnO2 Cylindrical battery

Li/MnO2 Cylindrical battery

Li/MnO2 Cylindrical battery:

Lithium primary battery (Primary Lithium Battery), is a high-energy chemical original battery, commonly known as lithium batteries. A metal lithium is a negative electrode, a solid salt or a salt soluble in an organic solvent is an electrolyte, a metal oxide or other solid, and the liquid oxidant is a positive electrode active. The general lithium manganese dioxide (Li / MnO2) batteries and the lithium fluorocarbon [Li / (CFx) n] batteries are represented by the letters CR and BR, respectively, and the subsequent numbers indicate the battery type. Lithium primary batteries are collectively referred to as a series of chemical power supplies that use metallic lithium as the anode material.

Lithium primary battery nominal voltage of 1.5V and 3.0V level two. Lithium battery has a button, roll cylindrical and rectangular and other structures. Lithium primary battery has a higher energy than the energy, long life, leakage and other advantages. Lithium battery structure is common with cylindrical carbon package, square laminated, cylindrical laminated, cylindrical winding, square winding and so on.



Pictures & Information

Application:

·Signal lights and the post indicator transfer

·Intelligent instruments

·Smoke detector

·Security device

·Portable devices

·Lighting

·Medical equipment

·Wireless and other military equipment

·Water,gas and electricity meters

·Memory backup power sources

·Archery tracer nock

Product Features:

·High and stable operating voltage

·High energy density (3 to 10 times higher than other non-lithium batteries)

·Wide operating temperature range (-40℃ to 85℃)(Depends on battery type,output current and environment condition)

·Low self-discharge rate (Less than 1% per year at room temperature)

·Long shelf life (90% capacity remaining after 10 year's storage at 20℃)

·Superior leakage resistance

·EXtremely safe (UL(MH45237/MH49306),UN38.3,CE and RoHS certificated)

·Environmental protection (Don't contain toxic materials,noxious liquids or gases)

Instructions Download:

NameDownload
Model Picture Nominal Voltage
(V)
Nominal Capcity
(mAh)
Standard Discharge Current
(mA)
Max.Discharge Current(mA)
continuous    Pulse
Max.
dimensions(mm)
Diam.(D)    Height(H)
Weight
(g)
IEC Reference Model Spec. Consultation

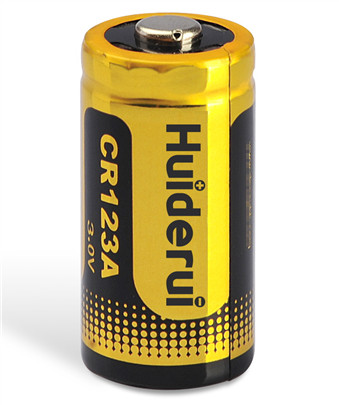

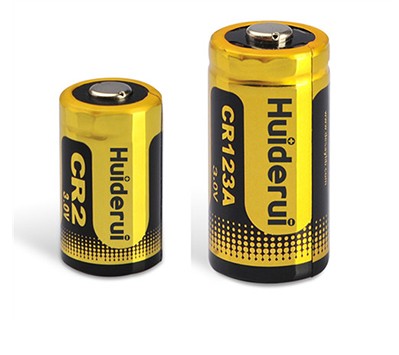

CR123A 3 1400 20 1000    3000 17    34.5 16.5 CR17345 CR 2/3A
CR123A 3 1600 1 1500    3500 17    34.5 16.5 CR17345 /

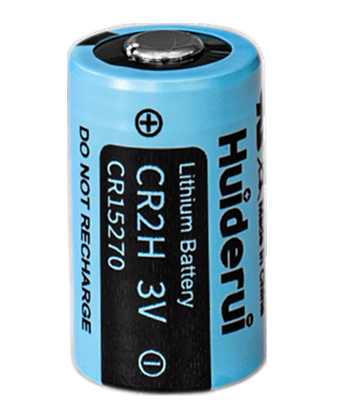

CR2 3 850 10 800    1500 15.5    27.0 11.0 CR15H270 CR2

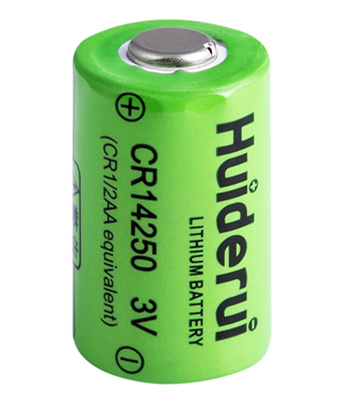

CR14250 3 850 1 800    1500 14.5    25 9.0 CR14250 CR 1/2AA

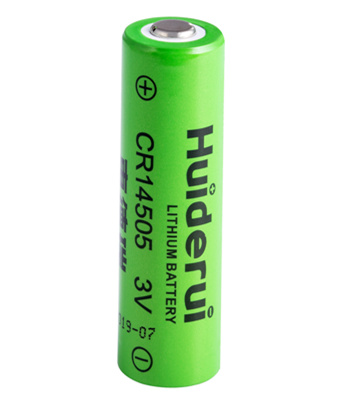

CR14505 3 1500 10 1000    3000 14.5    50.5 17.0 CR14505 CR AA

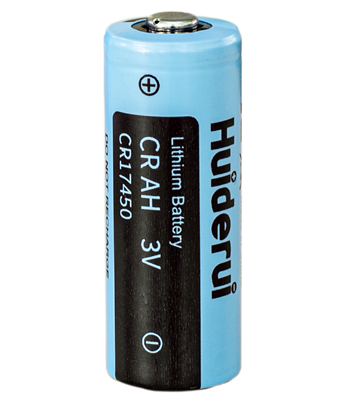

CR17450 3 2400 1 1000    3000 17.0    45.0 23.0 CR17450 CR-AG

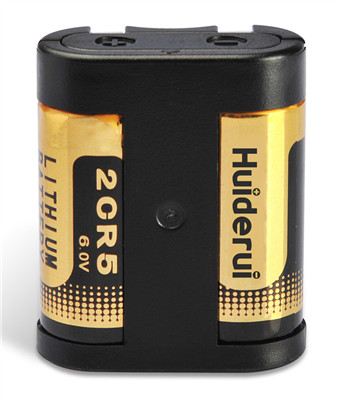

2CR5 6 1600 1 1000    3000 34.0 /17.0    45.0 38.0 2CR5 2CR5

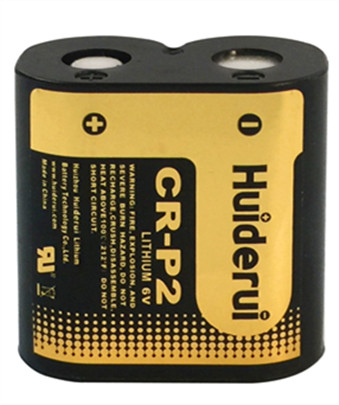

CR-P2 6 1600 1 1000    3000 35.0 /19.5    36.0 38.0 CP-P2 CP-P2

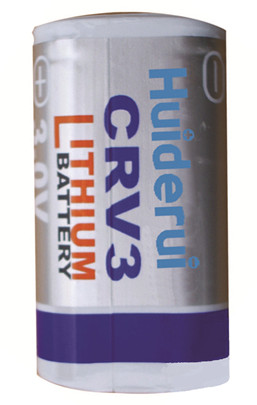

CRV3 3 3200 20 1500    3500 28.6 /14.4    52.2 35.0 CRV3 CR-V3

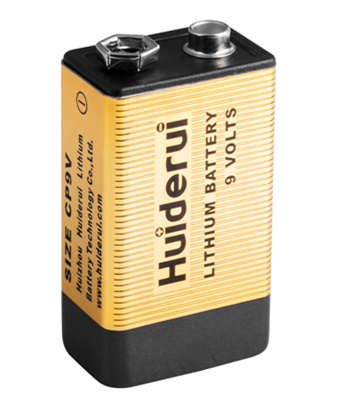

CP9V 9 1200 1 600    1000 26.3/17.0    48.5 41.0 --- U9VL
CR14250E-R 3 950 0.5 800    1500 14.5    25.0 9.5 CR14250 CR 1/2AA
CR14505E-R 3 2000 0.5 1000    2500 14.5    50.5 20.5 CR14505 CR AA

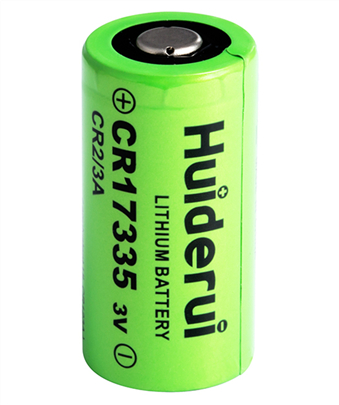

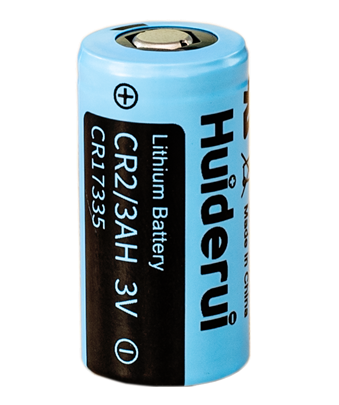

CR17335E-R 3 1800 0.5 1000    2500 17.0    33.5 20.0 CR17335 CR 2/3AG

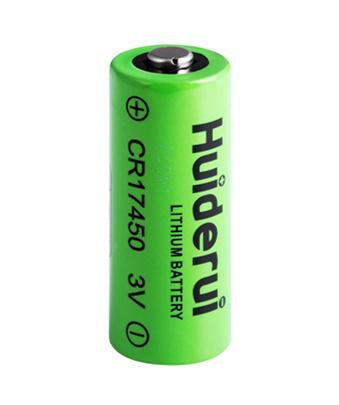

CR17450E-R 3 2700 0.5 1000    2500 17.0    45.0 24.0 CR17450 CR-AG
